[2022] Pass Cisco 300-625 Exam Updated 72 Questions
Get 2022 Updated Free Cisco 300-625 Exam Questions and Answer
NEW QUESTION 27
Which component is initially responsible for loading the kickstart image on Cisco MDS Switches?
- A. ROMMON
- B. BASH
- C. NX-OS
- D. BIOS
Answer: C
NEW QUESTION 28
What does an unlicensed DCNM SAN fail to display?
- A. events and fault management
- B. historical performance monitoring
- C. Fibre Channel, FCoE, and iSCSI topologies
- D. real-time performance monitoring
Answer: B
Explanation:
Section: Management and Monitoring
NEW QUESTION 29
Refer to the exhibit.
What is the result of the configuration?
- A. No-drop CoS values are advertised by the DCBX.
- B. PFC fails to operate properly unless LFC is disabled on Ethernet 1/10.
- C. LFC is prioritized over PFC on Ethernet 1/10.
- D. PFC operates on Ethernet 1/10 regardless of the capability of the peer.
Answer: A
Explanation:
Section: Implementation
NEW QUESTION 30
Which condition requires using a device alias rather than a Fibre Channel alias?
- A. The same alias must be used in zoning as well as DPVM.
- B. All aliases being used are being configured in the same VSAN.
- C. The zone database must be distributed over the fabric.
- D. Aliases must be saved within a central database on the fabric.
Answer: C
NEW QUESTION 31
A storage administrator is connecting two previously configured switches to make a single fabric. When the E Ports are connected, the adrrarustrator sees a ZONE MERGE FAILURE message referring to the zoneset for VSAN 10 on each switch. Which command should the administrator use to allow these switches to work together?
- A. zoneset copy active-zoneset full-zoneset
- B. zoneset import interface fc1/1 vsan 10
- C. zoneset distribute full vsan 10
- D. zoneset overwrite-control vsan 10
Answer: B
NEW QUESTION 32
Which two steps are mutual between Cisco secure boot and UEFI secure boot? (Choose two.)
- A. operating system
- B. hardware anchor
- C. kernel
- D. bootloader
- E. microloader
Answer: A,D
NEW QUESTION 33
A storage administrator is enabling DH-CHAP for the first time on a Fibre Channel fabric. Which condition must the administrator consider while configuring this feature?
- A. The MD5 hash must be used if TACACS+ or RADIUS authentication for FCSP is enabled.
- B. All switches on the fabric must be configured for the same password.
- C. Enabling DH-CHAP protocol feature is unsupported on FCIP interfaces.
- D. NTP must be configured on all devices or the configuration fails.
Answer: A
NEW QUESTION 34

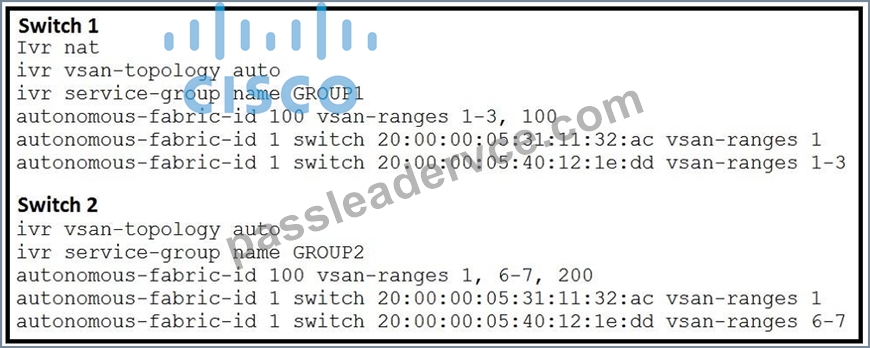

Refer to the exhibit.
What is the result of merging the fabric?
- A. The merged fabric IVR VSAN topology is set to activate.
- B. The merged fabric has NAT enabled.
- C. The merged fabric contains only service group Group1.
- D. The merge is invalid.
Answer: C
NEW QUESTION 35
A storage administrator manually configures a storage switch to use a new static domain ID. After issuing an fcdomain restart vsan 1 command, the administrator sees that the switch is still using the existing domain ID.
What is the reason why the configuration is not working?
- A. Static domain IDs apply only after a switch is rebooted.
- B. Domain manager fast restart is not enabled on the switch.
- C. Build fabric notifications were not sent to the other switches.
- D. The disruptive keyword was not used on the command.
Answer: A
Explanation:
Section: MDS Troubleshooting
NEW QUESTION 36

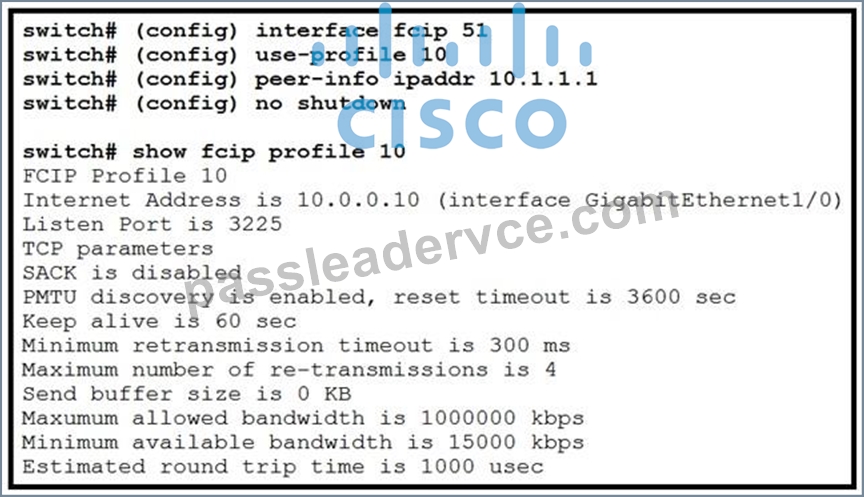

Refer to the exhibit.
Which configuration change improves the ability of the link to recover from frame loss?
- A. Enable selective acknowledgment.
- B. Increase the send buffer size to 15000 KB.
- C. Increase the reset timeout.
- D. Disable PMTU discovery.
Answer: A
NEW QUESTION 37
Which configuration is always required when running the setup utility on a Cisco MDS 9000 Series Switch?
- A. active NTP server
- B. administrator password
- C. active default gateway
- D. management IP address
Answer: B
Explanation:
Section: Implementation
NEW QUESTION 38
After user account attributes are modified in Cisco NX-OS, when do changes to the user's session attributes take effect?
- A. immediately
- B. at the scheduled time
- C. when the user logs out of a session
- D. when the user creates a new session
Answer: A
NEW QUESTION 39
Which port mode is used on an NPV device to connect to an NPIV core switch?
- A. E
- B. F
- C. NP
- D. N
Answer: D
NEW QUESTION 40
A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN
10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?
- A. switch(config)# feature port-security
switch(config)# port-security activate vsan 10 - B. switch(config)# feature port-security
switch(config)# port-security activate vsan 10 no auto-learn - C. switch(config)# port-security activate vsan 10
- D. switch(config)# feature port-security
switch(config)# port-security database vsan 10
switch(config-port-security)# any-wwn interface fc1/1 - fc1/48
Answer: C
NEW QUESTION 41

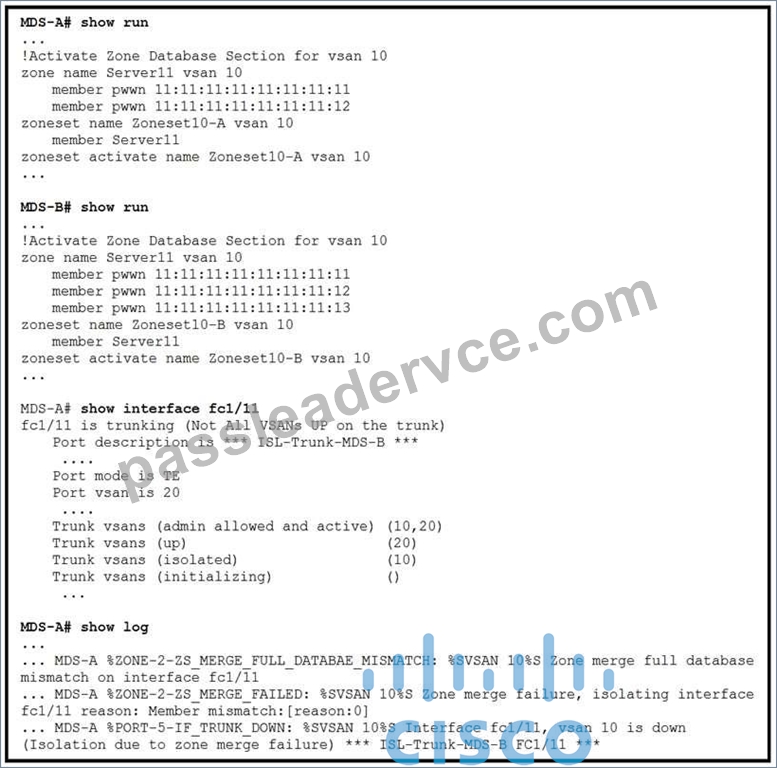

Refer to the exhibit.
A storage network engineer gets remote access to two Cisco MDS 9000 Series Switches with an ISL trunk and receives several log messages. Which set of actions resolve the problem while least affecting service?
- A. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.
2. shut/no shut interface fc1/11 on MDS-A. - B. 1. Deactivate zone set Zoneset10-A on MDS-A.
2. shut/no shut interface fc1/11 on MDS-A. - C. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.
2. Remove VSAN 10 from the allowed VSAN range of interface fc1/11 on MDS-A and add it back in the range. - D. 1. Explicitly import zone set Zoneset10-A on MDS-B using the zoneset import interface import fc1/11 vsan 10 command.
2. Activate the zone set Zoneset10-A.
Answer: A
Explanation:
Section: MDS Troubleshooting
NEW QUESTION 42
A storage administrator is configuring inter-VSAN routing on a fabric that contains duplicate domain IDS. Which feature must be configured to ensure continued operation?
- A. virtual domains
- B. auto topology
- C. transit VSANs
- D. lVR NAT
Answer: D
NEW QUESTION 43
Two stable fabrics have overlapping domains. After a switch from the first domain is joined to a switch from the second domain, both switches become isolated. What caused the problem?
- A. The autoreconfigure option is disabled on both switches.
- B. The rcf-reject option is enabled on the interfaces.
- C. The rcf-reject option is disabled on the interfaces.
- D. The autoreconfigure option is enabled on both switches.
Answer: A
NEW QUESTION 44
DRAG DROP

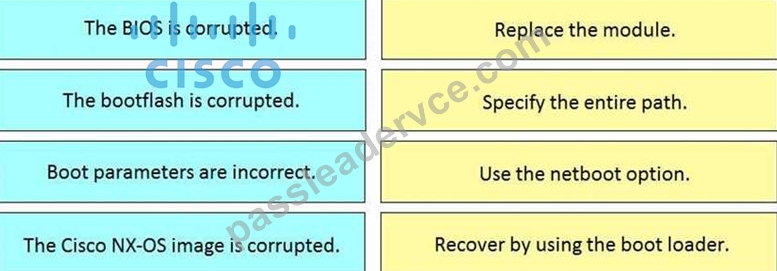

Drag and drop the boot issues from the left onto the correct solutions on the right.
Select and Place:
Answer:
Explanation:
Section: MDS Troubleshooting
Explanation
NEW QUESTION 45
......
